Gbona Awọn ọja
Centrifuge PRP ti a fi sinu firiji Pẹlu 10Ml/20Ml/30Ml/50Ml Prp Kit Fun Darapupo & Ṣiṣu
| ohun elo: | Awọn ile-iwosan, Awọn ile-iwosan ti ogbo, Awọn ile-iṣẹ ounjẹ, Awọn ile-ẹkọ giga & Awọn ile-iwe giga, Awọn ile-iṣẹ oogun, Awọn ile-iṣẹ Aṣa Ẹjẹ, Ile-ẹkọ ẹwa |
| Max. Iyara | 6000 irọlẹ |
| O pọju.RCF | 4588xg |
| O pọju.Agbara | 4 * 250ml |
| Rotors ti o baamu | Rotor igun ti o wa titi, fifọ jade garawa, ẹrọ iyipo fireemu irin |
| àpapọ | LCD |
| Awoṣe Number: | BYL-5R |
| iwe eri: | CE, ISO13485,ISO9001,SFDA |
| atilẹyin ọja | Atilẹyin ọdun 1 fun gbogbo ẹrọ, atilẹyin ọja ọdun 3 fun compressor ati atilẹyin ọja ọdun 5 fun motor. Awọn ẹya aropo ọfẹ ati sowo laarin atilẹyin ọja. |
- Apejuwe
- Fidio
- imọ ni pato
- Rotors ati Awọn ẹya ẹrọ
- ifigagbaga Anfani
Kekere iyara refrigerated centrifuge BYL-5R is used for separating and purifying materials based on their density and size. They are essential tools in many scientific and medical fields, allowing researchers and scientists to study and understand various biological and chemical processes. Mainly used in orthopedics department, pain department, surgery department,medical cosmetology etc. PRP/ACT contain much growth factor, can speed up the recovery of soft tissue and bone tissue, reduce postoperative reaction,anti-infection, also can fresh skin.
Design
● Irin ile ati irin alagbara, irin centrifuge iyẹwu ni o wa autoclave-anfani ati sooro detergents ati disinfection olomi.
● Ferese akiyesi lori ideri fun isọdọtun iyara ati wiwọn ariwo.
● Microprocessor Iṣakoso pẹlu igbohunsafẹfẹ iyipada AC motor drive

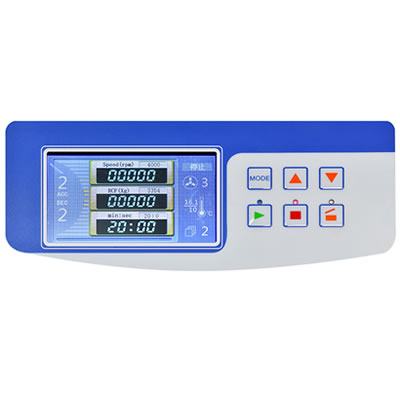

● LCD Ṣe afihan awọn ipele ti Iyara, Aago, RCF, Rotors, Eto (iranti), isare & Alaye idinku ati alaye koodu aṣiṣe.
● Oruka edidi awọn ipele meji ti a ṣe fun ideri centrifuge ati ohun elo lati tọju idaduro to dara pipẹ.
● Awọn eto 25 ti a fipamọ, le gbe laarin RPR, CGF, APRF, IPRF.
● Eto iyara iyipada ti a ṣe sinu, o dara fun 60ml / 20ml / 10ml / 8ml syringe abẹrẹ tabi iyapa PRP.
● Awọn garawa wiwu, awọn alamuuṣẹ tabi awọn rotors le jẹ sterilized nipasẹ iwọn otutu giga.
Onirọrun aṣamulo
● Eto ati ipamọ, fipamọ to awọn eto 30 ati pese iraye si olumulo taara pẹlu fifipamọ bọtini bọtini kan. Paramita ti o fipamọ: apapo wa ninu iranti paapaa lẹhin ti centrifugation ti wa ni pipa.
● Pese awọn oṣuwọn isare 10 ati rampu braking 10, lati yago fun imunadoko isọdọtun keji, pẹlu ipa centrifugation to dara julọ.
● Titiipa ideri aifọwọyi ati didimu lakoko ṣiṣe rotor
● Awọn ẹrọ iyipo ti o ni irọrun paarọ, olutọpa rotor pataki eyiti o jẹ ki o rọrun lati ṣaja ati gbejade rotor.
● Laasigbotitusita aifọwọyi pẹlu itọkasi koodu aṣiṣe ati itaniji loju iboju.
● “Dẹkun” imọ-ẹrọ itọsi. Ariwo ipele kekere ju 58 decibel ni iyara iyipo ti o ga julọ.
● Iyipada rpm / rcf aifọwọyi
● Eto idanimọ ẹrọ iyipo aifọwọyi, koodu idanimọ rotor ṣe idiwọ ẹrọ iyipo lati iyara ju.
● CFC free refrigeration System, Pre-itutu ẹya ara ẹrọ, Konge iwọn otutu Iṣakoso soke si - 20 ° C.
Abo
● Ti ṣejade ni ibamu si awọn ilana aabo agbaye (fun apẹẹrẹ IEC 61010)
● Aabo Itanna ideri interlock, ilekun ko le ṣii nigbati rotor nṣiṣẹ ati ẹrọ kii yoo ṣiṣẹ nigbati ideri ṣii ati koodu aṣiṣe han.
● Itusilẹ titiipa-pajawiri nigbati ikuna agbara (wulo pupọ ni idalọwọduro agbara airotẹlẹ).
● Gas mitari fun ideri ju Idaabobo.
● Awọn aabo aabo ni a ṣe fun iyara ti o kọja, lori alapapo (moto, iyẹwu), aiṣedeede ati bẹbẹ lọ lati rii daju aabo ẹrọ eniyan.
| Iwọn iyara (rpm) | 0-6000rpm adijositabulu | Akoko ibiti | 1-99 iṣẹju 59s adijositabulu |
| O pọju agbara (milimita) | 4 * 250ml | Iyara iyara | ± 10r / iṣẹju |
| Iwọn RCF (xg) | 0-4588xg adijositabulu | ACC/DEC | 1-10 awọn ošuwọn |
| Ibiti iṣakoso otutu | -20 ℃ ~ 40 ℃ | Pipe iṣakoso iwọn otutu | 1 ℃ |
| Ariwo (dBA) | ≦58dB(A) | Iwọn apapọ (laisi ẹrọ iyipo) | 90KGS |
| ipese agbara | AC220V,50HZ,10A, 1050W | Apa miran (mm) | 670x740x370mm(LxWxH) |
| No. | ohun | Max. agbara | Max.iyara | O pọju.RCF | akọsilẹ |
NO.1
| Rotor igun | 12x15/10/5ml | 6000r / min | 4588xg | PP / PC tube |
| ti nmu badọgba | 12x2ml | PP / PC tube | |||
NO.2
| Golifu garawa | 4x250ml | 4000r / min | 3023xg | Ago yika |
| ti nmu badọgba | 4x50ml | PP / PC tube | |||
| ti nmu badọgba | 4x20ml | PP / PC tube | |||
| ti nmu badọgba | 16x8/10ml | PP / PC tube | |||
NO.3
| Rotor Swing | irin fireemu iyipo | 4000r / min | 3041xg | syringe abẹrẹ tabi PRP tube |
| Fireemu golifu | 4x2x100ml | PP / PC tube | |||
| ti nmu badọgba | 4x2x50ml | PP / PC tube | |||
| ti nmu badọgba | 4x2x20ml | PP / PC tube | |||
| ti nmu badọgba | 4x2x8/10ml | PP / PC tube | |||
NO.4
| Rotor Swing | irin fireemu iyipo | 4000r / min | 3041xg | syringe abẹrẹ tabi PRP tube |
| Fireemu golifu | 4x100ml | PP / PC tube | |||
| ti nmu badọgba | 4x50ml | PP / PC tube | |||
| ti nmu badọgba | 4x20ml | PP / PC tube | |||
| ti nmu badọgba | 4x8/10ml | PP / PC tube | |||
 | |||||
1.Professional centrifuge olupese, ifigagbaga owo.
2.ISO9001, ISO13485, CE, Iwe-ẹri SFDA, gbogbo awọn ẹrọ gba idanwo didara ti o muna ati apoti ti o dara ṣaaju gbigbe.
3.Long-igba imọ support ati ki o ọjọgbọn onibara iṣẹ ni gbogbo ipele ti ọja tita, ifijiṣẹ ati operation
4.We tun le pese awọn iṣeduro ti a ṣe adani fun awọn ibeere pataki ti awọn onibara.
5.Powered pẹlu ẹgbẹ ti o munadoko ti awọn onimọ-ẹrọ ti o ṣe atilẹyin nipasẹ awọn ọdun ti iriri ni awọn aaye wọn, ile-iṣẹ naa ṣe idaniloju ọja kọọkan ati gbogbo ọja ti o lọ kuro ni ile-iṣẹ iṣelọpọ jẹ ami-ami ni gbogbo awọn ọna.
