Gbona Awọn ọja
Centrifuge Iwapọ Iyara Diji pẹlu Ariwo Kekere
| ohun elo: | Awọn ile-iwosan, Awọn ile-iwosan ti ogbo, Awọn ile-iṣẹ Ounje, Awọn ile-ẹkọ giga & Awọn ile-iwe giga, Awọn ile-iṣẹ oogun, Awọn ile-iṣẹ Asa sẹẹli |
| Max. Iyara | 21000rpm pẹlu iyipo igun ti o wa titi 12x1.5 / 2.2ml |
| O pọju.RCF | 31061xg |
| O pọju.Agbara | 4 * 100ml ti o wa titi igun iyipo |
| Ibiti iṣakoso otutu | -20 ℃ ~ 40 ℃ |
| Rotors ti o baamu | Awọn rotors igun ti o wa titi |
| àpapọ | LCD |
| Awoṣe Number: | TGL-20M |
| iwe eri: | CE, ISO13485,ISO9001,SFDA |
| atilẹyin ọja | Atilẹyin ọdun 1 fun gbogbo ẹrọ, atilẹyin ọja ọdun 3 fun compressor ati atilẹyin ọja ọdun 5 fun motor. Awọn ẹya aropo ọfẹ ati sowo laarin atilẹyin ọja. |
- Apejuwe
- Fidio
- imọ ni pato
- Rotors ati Awọn ẹya ẹrọ
- ifigagbaga Anfani
Sentrífù oníná iyọ̀ gíga tí a fi sínú benchtop TGL-20M le de iyara to ga julọ ti 21000rpm, o le ba awọn rotors ori igun ti o wa titi mu fun awọn iwọn oniyipada, agbara to pọ julọ jẹ 4 * 100ml.
Ẹya ti itutu agbaiye ngbanilaaye fun iṣakoso iwọn otutu lakoko ilana iyapa, eyiti o ṣe pataki fun mimu iduroṣinṣin ti awọn apẹẹrẹ kan. O jẹ apẹrẹ lati gba ọpọlọpọ awọn oriṣi ti awọn rotors igun-igun ati awọn oluyipada, ti o jẹ ki o dara fun centrifugation iyara giga ti awọn iwọn didun lati 0.2ml si 100ml. Apẹrẹ iwapọ rẹ jẹ ki o jẹ apẹrẹ fun awọn ile-iṣere pẹlu aaye to lopin.
Design
● Irin ile, ideri irin, ati irin alagbara, irin centrifuge iyẹwu ni o wa autoclave-anfani ati sooro detergents ati disinfection olomi.
● Ferese akiyesi lori ideri fun isọdọtun iyara ati wiwọn ariwo.
● Microprocessor Iṣakoso pẹlu igbohunsafẹfẹ iyipada AC motor drive
● LCD Ṣe afihan awọn ipele ti Iyara, Aago, RCF, Rotors, Eto (iranti), isare & Alaye idinku ati alaye koodu aṣiṣe.
● Oruka edidi awọn ipele meji ti a ṣe fun ideri centrifuge ati ohun elo lati tọju idaduro to dara pipẹ.
Onirọrun aṣamulo
● CFC-free refrigerant, sensọ otutu inu iyẹwu, ẹya-ara itutu agbaiye, iṣakoso iwọn otutu gangan titi de - 20 ° C.
● Eto ati ipamọ, fipamọ to awọn eto 30 ati pese iraye si olumulo taara pẹlu fifipamọ bọtini bọtini kan. Paramita ti o fipamọ: apapo wa ninu iranti paapaa lẹhin ti centrifugation ti wa ni pipa.
● Pese awọn oṣuwọn isare 10 ati rampu braking 10, lati yago fun imunadoko isọdọtun keji, pẹlu ipa centrifugation to dara julọ.
● Titiipa ideri aifọwọyi ati didimu lakoko ṣiṣe rotor
● Awọn ẹrọ iyipo ti o ni irọrun paarọ, olutọpa rotor pataki eyiti o jẹ ki o rọrun lati ṣaja ati gbejade rotor.
● Laasigbotitusita aifọwọyi pẹlu itọkasi koodu aṣiṣe ati itaniji loju iboju.
● Iwọn ariwo ti o kere ju decibel 58 ni iyara iyipo ti o ga julọ.
● Eto idanimọ ẹrọ iyipo aifọwọyi, koodu idanimọ rotor ṣe idiwọ ẹrọ iyipo lati iyara ju.
Abo
● Ijẹrisi Aabo ati Awọn Ilana: CE
● Aabo ọja: EN61010-1 ati EN 61010-2-020,
● Ibamu itanna: EN 61326-1
● Aabo Itanna ideri interlock, ilekun ko le ṣii nigbati rotor nṣiṣẹ ati ẹrọ kii yoo ṣiṣẹ nigbati ideri ṣii ati koodu aṣiṣe han.
● Itusilẹ titiipa-pajawiri nigbati ikuna agbara (wulo pupọ ni idalọwọduro agbara airotẹlẹ).
● Gas mitari fun ideri ju Idaabobo.
● Awọn aabo aabo ni a ṣe fun iyara ti o kọja, lori alapapo (moto, iyẹwu), aiṣedeede ati bẹbẹ lọ lati rii daju aabo ẹrọ eniyan.
| Iwọn iyara (rpm) | 0-21000rpm adijositabulu | Akoko ibiti | 1-99 iṣẹju adijositabulu |
| O pọju agbara (milimita) | 4 * 100ml | Iyara iyara | ± 10r / iṣẹju |
| Iwọn RCF (xg) | 0-31061xg adijositabulu | ACC/DEC | 1-10 awọn ošuwọn |
| Ibiti iṣakoso otutu | -20 ℃ ~ 40 ℃ | Pipe iṣakoso iwọn otutu | 1 ℃ |
| Ariwo (dBA) | 58dB(A) | Iwọn apapọ (laisi ẹrọ iyipo) | 80KGS |
| ipese agbara | AC220V,50HZ,10A, 880W | Apa miran (mm) | 600x570x380mm(LxWxH) |

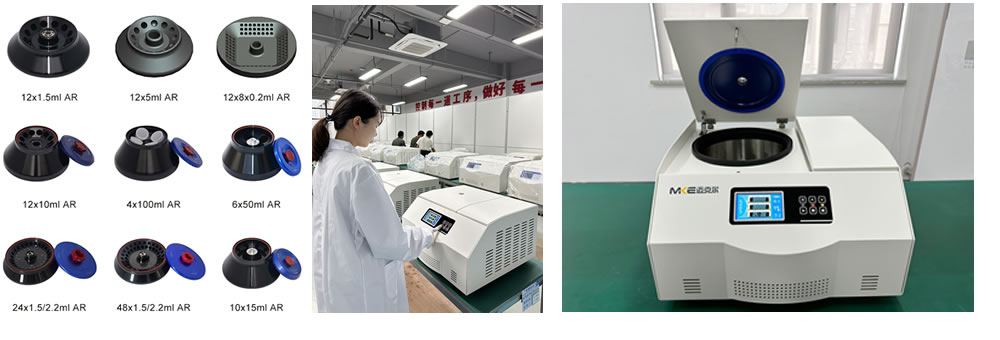

| No. | ohun | Max. agbara | Max.iyara | O pọju.RCF | akọsilẹ |
NO.1
|
Rotor igun | 12 × 1.5 / 2.2ml | 21000r / min | 31061xg | PP / PC tube |
| ti nmu badọgba | 12 × 0.5 milimita | PP / PC tube | |||
| ti nmu badọgba | 12 × 0.2 milimita | PP / PC tube | |||
NO.2
|
Rotor igun | 12 × 5 milimita | 16500r / min | 19480xg | PP / PC tube |
| ti nmu badọgba | 12 × 1.5 milimita | PP / PC tube | |||
NO.3
|
Rotor igun | 12 × 10 milimita | 15000r / min | 21130xg | PP / PC tube |
| ti nmu badọgba | 12 × 5 milimita | PP / PC tube | |||
| ti nmu badọgba | 12 × 1.5 milimita | PP / PC tube | |||
NO.4
|
Rotor igun | 24 × 1.5 / 2.2ml | 16000r / min | 24843xg | PP / PC tube |
| ti nmu badọgba | 24 × 0.5 milimita | PP / PC tube | |||
| ti nmu badọgba | 24 × 0.2 milimita | PP / PC tube | |||
N0.5
|
Rotor igun | 48 × 1.5 / 2.2ml | 14000r / min | 20379xg | PP / PC tube |
| ti nmu badọgba | 48 × 0.5 milimita | PP / PC tube | |||
| ti nmu badọgba | 48 × 0.2 milimita | PP / PC tube | |||
NO.6
|
Rotor igun | 12×8×0.2ml | 12000r / min | 16985xg | PCR 8-tube awọn ila |
NO.7
|
Rotor igun | 10 × 15 milimita | 13000r / min | 19650xg | PP / PC tube |
| ti nmu badọgba | 10 × 5 milimita | PP / PC tube | |||
| ti nmu badọgba | 10 × 1.5 milimita | PP / PC tube | |||
NO.8
|
Rotor igun | 6 × 50 milimita | 13000r / min | 18327xg | PP / PC tube |
| ti nmu badọgba | 6 × 15 milimita | PP / PC tube | |||
| ti nmu badọgba | 6 × 10 milimita | PP / PC tube | |||
| ti nmu badọgba | 6×3×1.5ml | PP / PC tube | |||
NO.9
|
Rotor igun | 4 × 10/100ml | 11000r / min | 13284xg | PP / PC tube |
| ti nmu badọgba | 4 × 50 milimita | PP / PC tube | |||
| ti nmu badọgba | 4 × 15 milimita | PP / PC tube | |||
| ti nmu badọgba | 4 × 10 milimita | PP / PC tube | |||
| ti nmu badọgba | 4 × 5 milimita | PP / PC tube | |||
| ti nmu badọgba | 4 × 1.5 milimita | PP / PC tube | |||
 | |||||
1.Professional centrifuge olupese, ifigagbaga owo.
2.ISO9001, ISO13485, CE, Iwe-ẹri SFDA, gbogbo awọn ẹrọ gba idanwo didara ti o muna ati apoti ti o dara ṣaaju gbigbe.
3.Long-igba imọ support ati ki o ọjọgbọn onibara iṣẹ ni gbogbo ipele ti ọja tita, ifijiṣẹ ati operation
4.We tun le pese awọn iṣeduro ti a ṣe adani fun awọn ibeere pataki ti awọn onibara.
5.Powered pẹlu ẹgbẹ ti o munadoko ti awọn onimọ-ẹrọ ti o ṣe atilẹyin nipasẹ awọn ọdun ti iriri ni awọn aaye wọn, ile-iṣẹ naa ṣe idaniloju ọja kọọkan ati gbogbo ọja ti o lọ kuro ni ile-iṣẹ iṣelọpọ jẹ ami-ami ni gbogbo awọn ọna.
